Camera
24.3 megapixels
Weight With Gimbal
500 grams
Sensor Type
CMOS
Specifications
Complete professional features designed for real-world performance and mission-critical reliability for aerial survey and mapping work.
The WISPR custom gimbal eliminates cumbersome wires and provides a seamless integration experience for quick and efficient payload attachment to the drone. This ensures clean operation when using the drone mapping camera in the field.

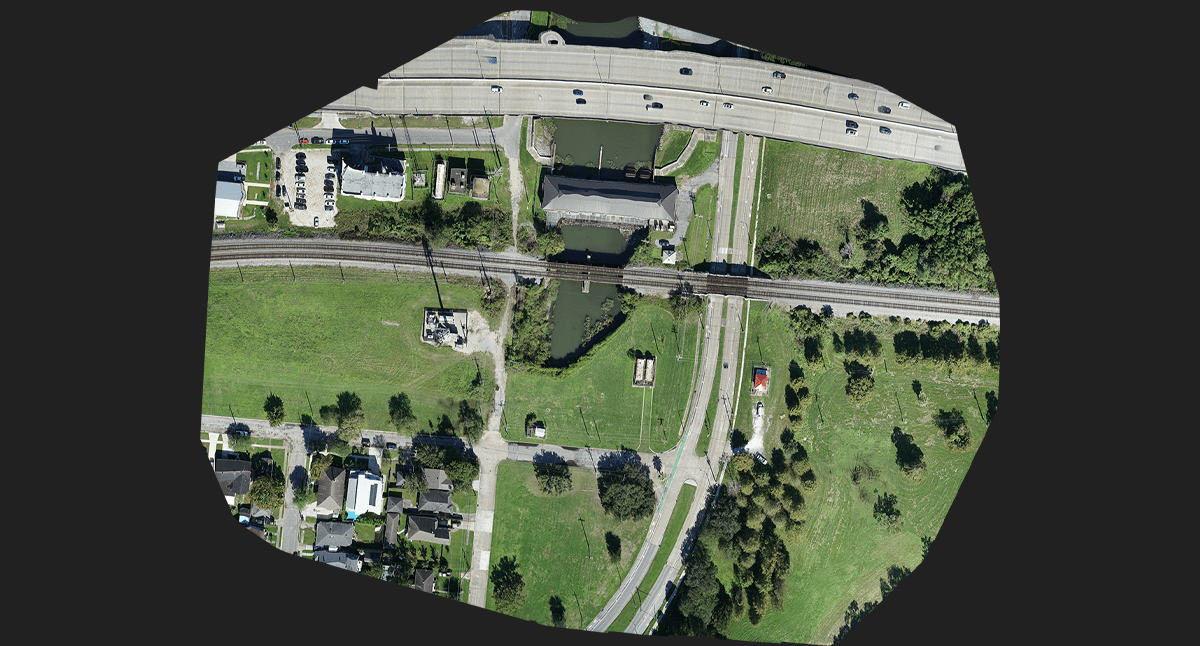

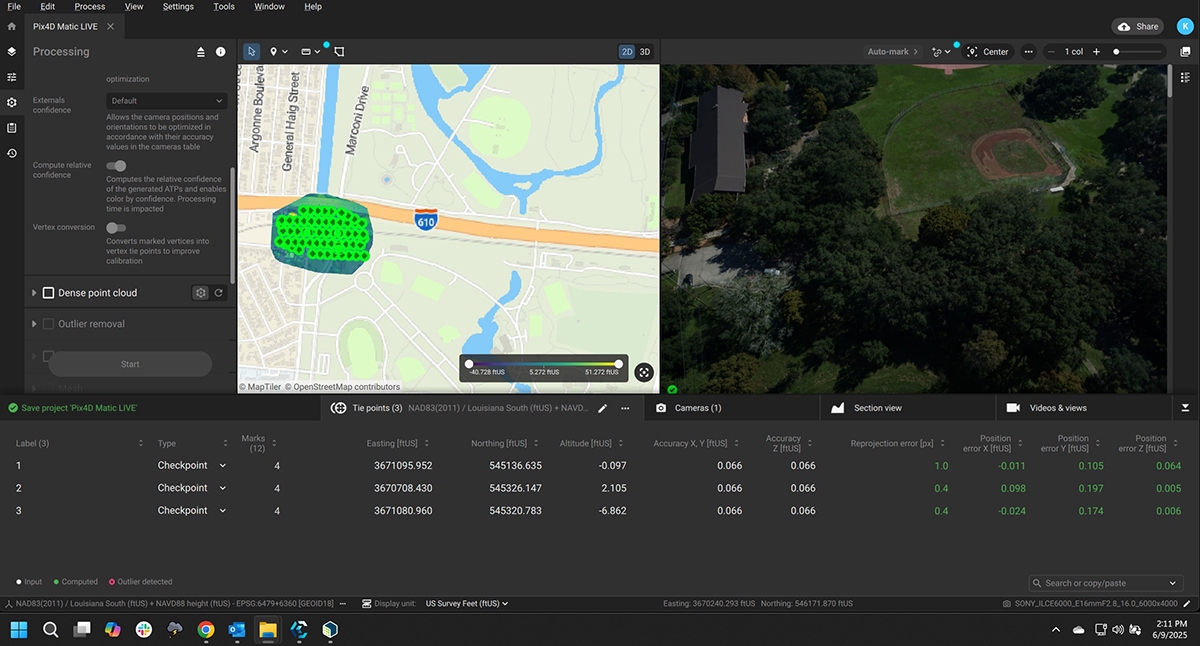

WISPR’s custom software streamlines geotagging for aerial mapping by integrating with GPS, RTK, and PPK data. Each image is associated with accurate geographic coordinates, supporting precise aerial survey and inspection results.
Mechanical shutters provide global shutter functionality, preventing distortion and skewing associated with rolling shutters. This results in more accurate and distortion-free data for aerial mapping missions.
Sensor
Sensor
Exmor APS-C CMOS
Sensor Size
1.11”
Sensor Width
0.93”
Sensor Height
0.61”
Camera
Photo Resolution
24 megapixels
Image Size
6000 x 4000
Photo Format
JPEG, HEIF, RAW
Video Resolution
1080P @ 60p max
Video Format
XAVC S: MPEG-4 AVC/H.264
AVCHD
2.0 / MP4
Shutter
Shutter Type
Mechanical shutter/Electronic Shutter
Shutter Speed
Still images (Mechanical shutter): 1/4000 to 30s
Exposure Compensation
+/- 5.0EV in 0.3EV steps
ISO Sensitivity
Auto, 100–25600; 51200 available with MFNR
PAL/NTSC
Supported
Camera Lens
Lens Options
Sony E Mount 16mm Lens
Field of view (FOV)
83°
Gimbal
Angular Vibration Range
±0.02°
Maximum Controlled Rotation Speed
Pan axis: 180°/s Tilt axis: 180°/s Roll axis: 180°/s
Mechanical Endpoint Range
Pan: ±326° • Tilt: +45° ~ -125° • Roll: +45° ~ -45°
Controlled Rotation Range
Pan: ±320° • Tilt: +40° ~ -120° • Roll: ±40°
Operating Temperature
Operating Temperature
WISPR 24MP Mapper

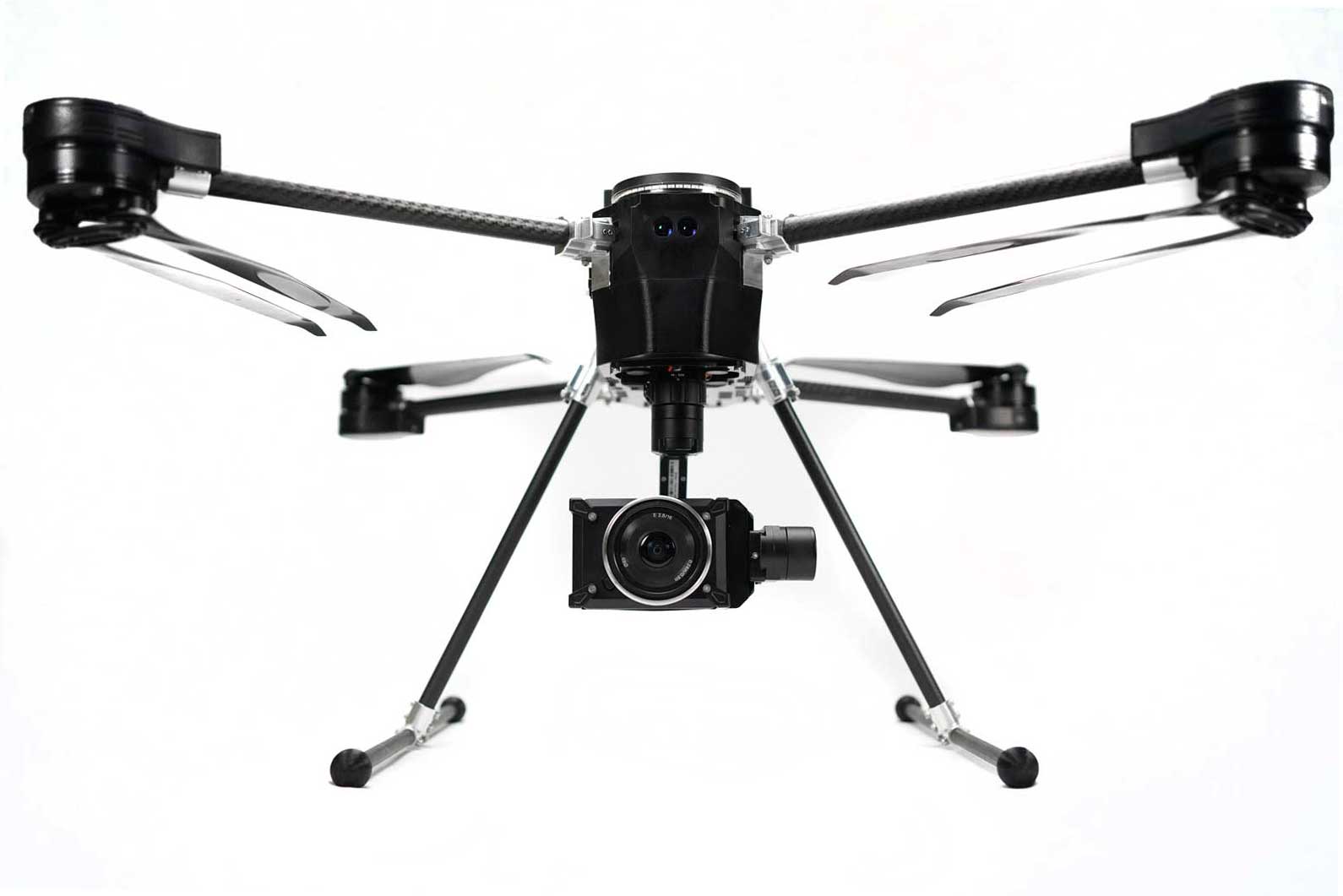

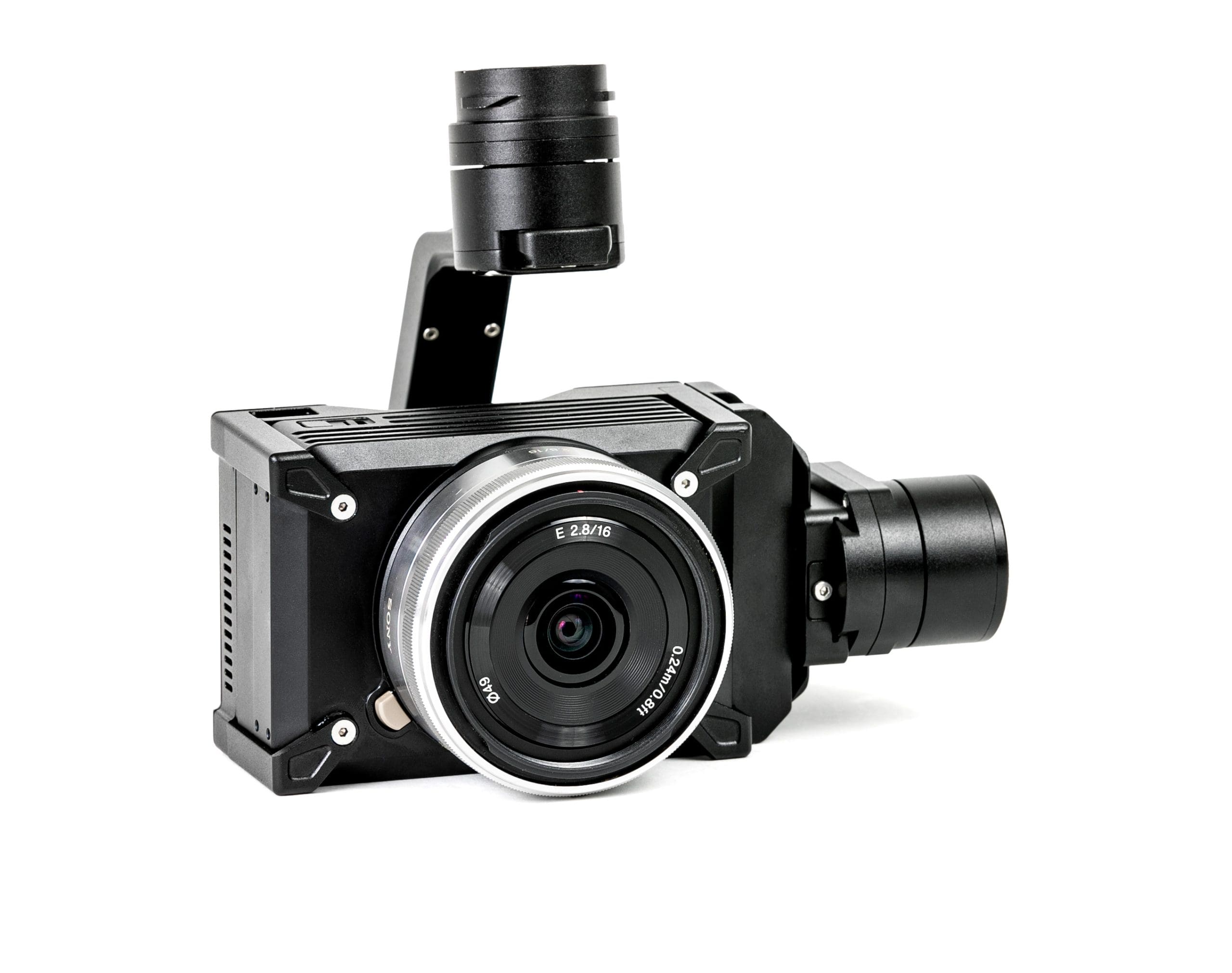

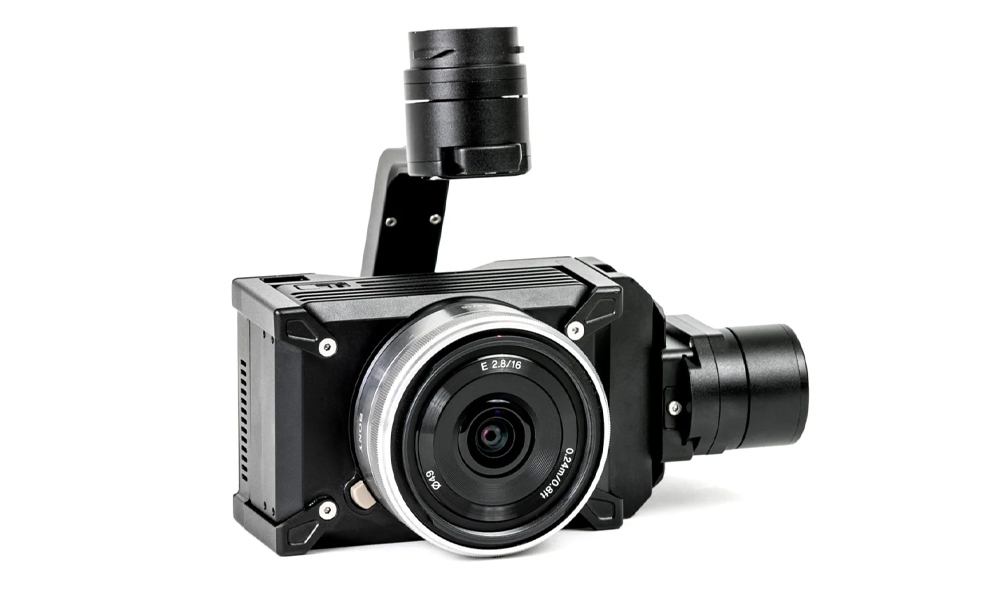

The WISPR 24MP drone mapping camera features a full-frame Sony APS-C sensor with 24.3 effective megapixels for high-resolution aerial mapping and aerial survey applications. With RTK and PPK compatibility, a 120-gram design (excluding the lens), and an activated cooling fan, it offers a reliable solution for mapping and inspection missions. Compatible with the Ranger Pro and the SkyScout 2/2+.
