Gremsy Vio

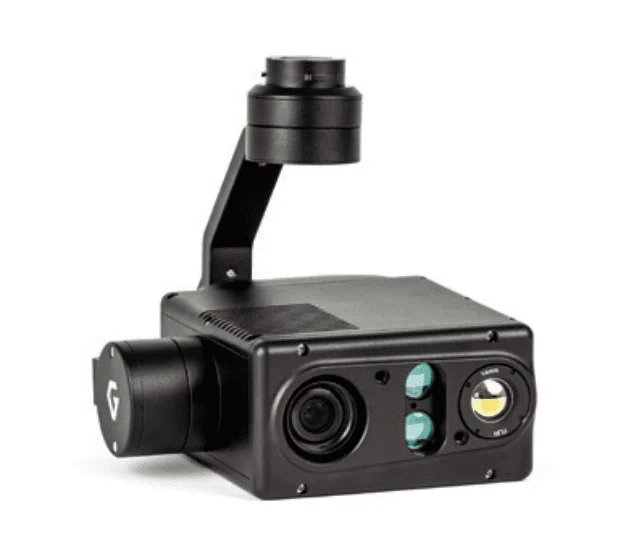

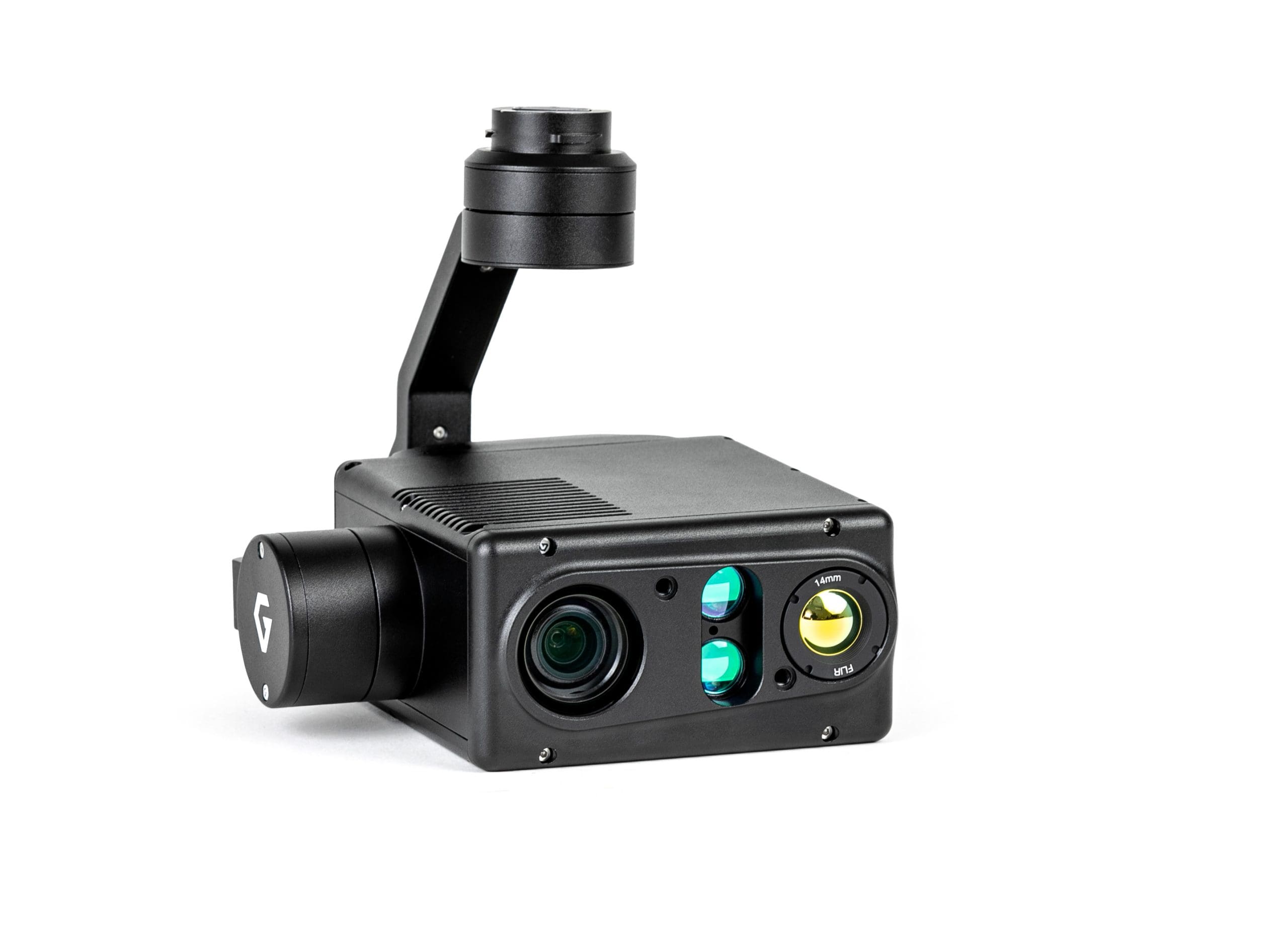

The Gremsy Vio series is an advanced, lightweight EO/IR payload featuring a 4K RGB zoom camera, a 640 × 512 radiometric thermal camera, and an integrated laser rangefinder with up to 2400 m range. The payload is designed to combine visible, thermal, and distance data in a single stabilized system for industrial applications.
Camera
8.51 megapixels
Sensor Size
0.4”
Frame Rate
60Hz
See The Gremsy Vio in Action
RGB and thermal imaging for inspection, public safety, and government operations.

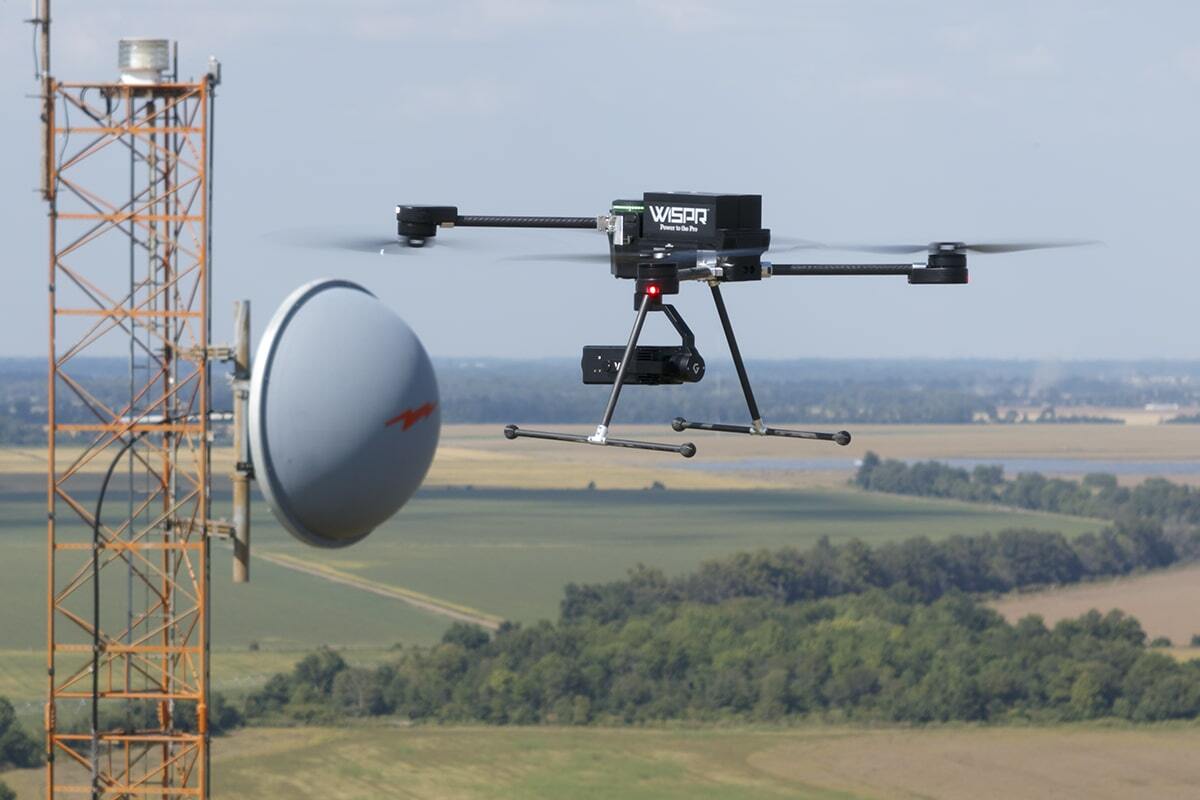

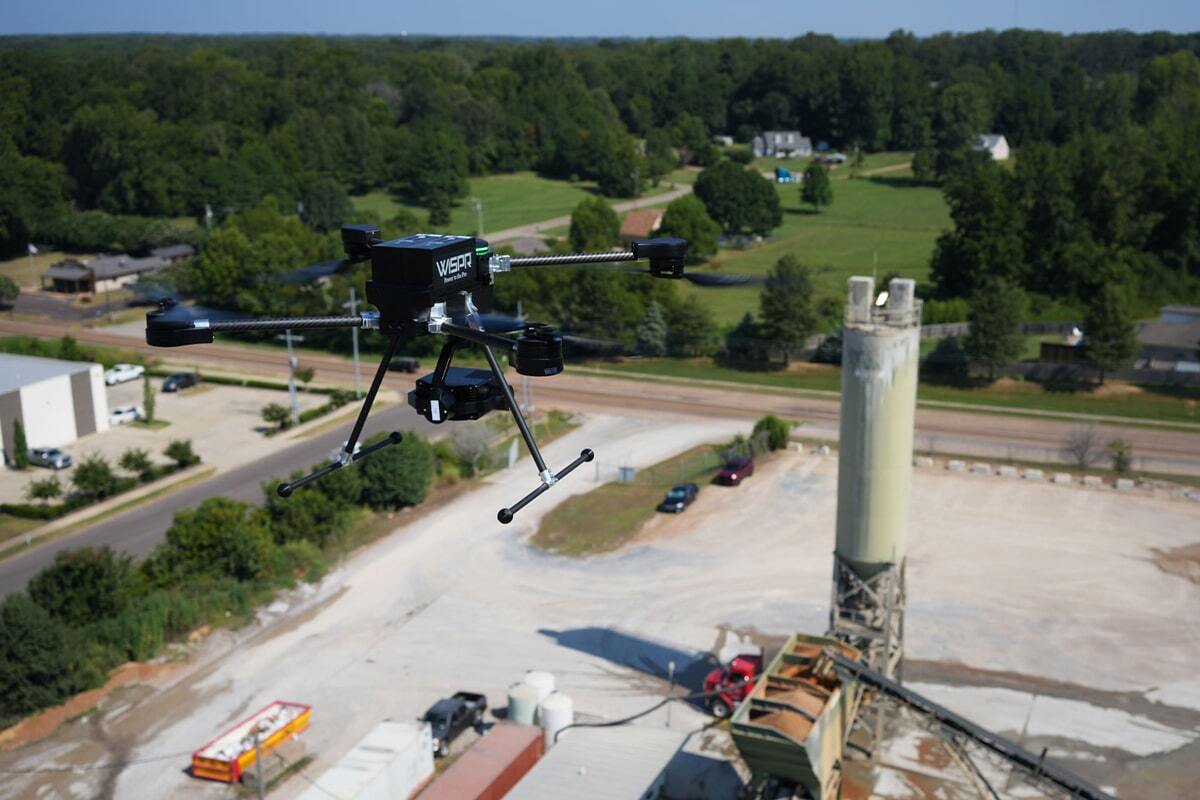

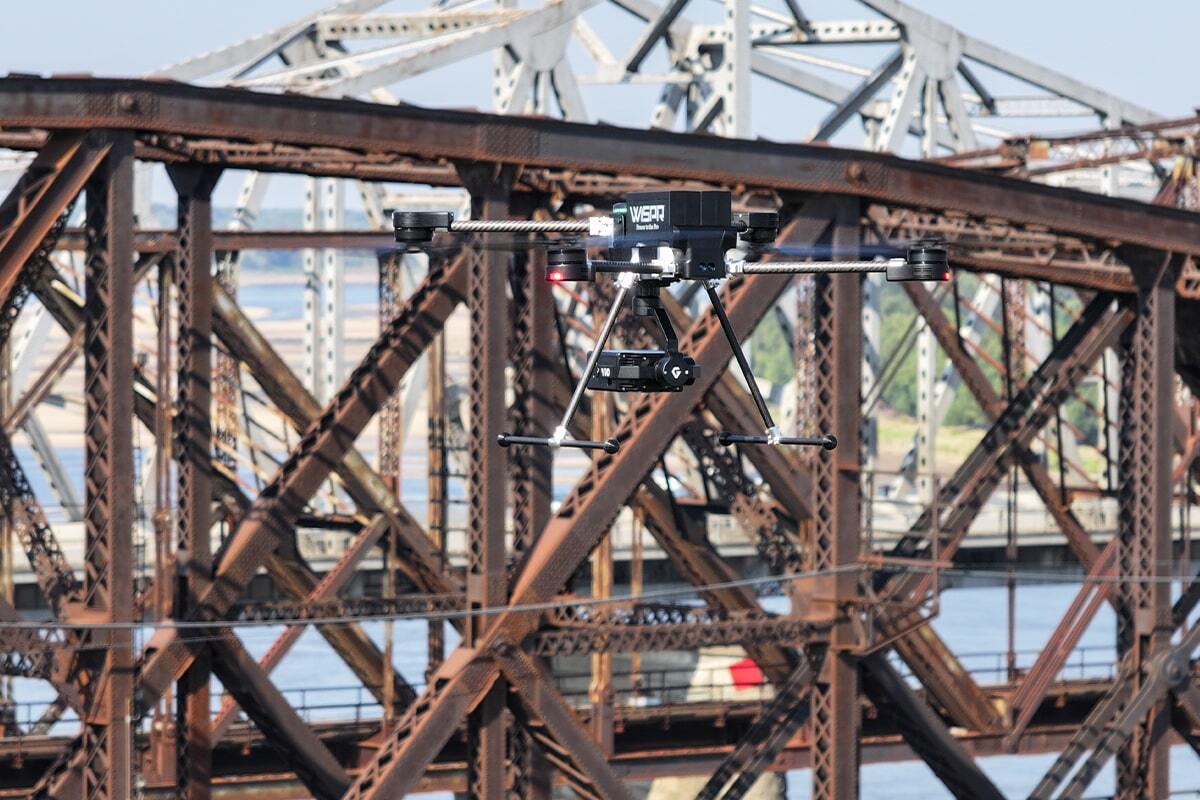

The Gremsy Vio provides stabilized RGB and thermal video output, allowing operators to visually observe assets and environments using both visible light and infrared imaging for commercial, public safety, and government inspection scenarios.
Quality Report
Learn More About the Gremsy Vio
Review sample imagery and data captured using the Gremsy Vio EO/IR payload. This videos highlights RGB zoom imagery, thermal output, and rangefinding data across inspection and public safety scenarios commonly associated with public infrastructure and government inspection programs.
Specifications
Key EO/IR capabilities for inspection and public safety.
The RGB camera supports optical, digital, and super resolution zoom, using an 8.51 MP Exmor R CMOS sensor with a 0.4” sensor size. Video is captured at 4K resolution at 30 fps, enabling visual inspection across a wide range of distances, including large-area and public-infrastructure inspection environments.
The radiometric thermal camera captures imagery at 640 × 512 resolution and 60 Hz, with 1× to 8× digital zoom. Thermal sensitivity is rated at ≤ 50 mK (Vio F1 specification), allowing detection of thermal differences within the sensor’s operating range during inspection operations conducted by commercial and government teams.
The integrated laser rangefinder provides distance measurements from 0 to 2400 m at 1 Hz and 0 to 1200 m at 10 Hz, with a precision of 0.1 m to 0.5 m. Distance data can be used alongside RGB and thermal imagery.
The Gremsy Vio supports data embedding within captured imagery to identify points of interest. Live video streaming enables additional visibility during operations by allowing RGB and thermal video feeds to be viewed in real time.
Camera
Sensor
Exmor R CMOS sensor
Sensor Size
0.4”
Photo Resolution
8.51 megapixels
Lens
4.4 mm – 88.4 mm
Zoom
Optical 20× · Digital 12× · Super Resolution 30×
Image Size
3840 × 2160
Photo Format
JPEG
Video
Video Resolution
3840 × 2160 @ 30 fps | 1920 × 1080 @ 60 fps
Video Format
MP4
Aspect Ratio
Photo 16:9
Field of View
Wide 72° · Telephoto 4.1°
Shutter Speed
1/30 – 1/2000 s
Exposure Settings
Auto, Shutter Speed, Iris, Bright, Manual
White Balance
Auto, Indoor, Outdoor
Zoom Modes
Combined, Separate, Super Resolution
Gimbal
Angular Vibration Range
±0.01°
Maximum Controlled Rotation Speed
Pan 100°/s · Tilt 100°/s · Roll 100°/s
Mechanical Endpoint Range
Tilt ±143° · Pan ±320° · Roll −260° to 80°
Controlled Rotation Range
Tilt ±120° · Pan ±310° · Roll ±45°
Operating Temperature
32°F – 122°F
Thermal
Sensor
Uncooled Vox Microbolometer
Array Format
640 × 512
Frame Rate
60 Hz
Pixel Size
12 µm
Spectral Range
8–14 µm
Scene Temperature Range
Up to 140°C (high gain) | Up to 500°C (low gain)
Lens Options
Fixed focus · 32° HFOV · 14 mm EFL
Digital Zoom
1× – 8×
Resolution
Photo 640 × 512 · Video 640 × 512 @ 60 Hz
Formats
JPEG (photo) · MP4 (video)
Thermal Sensitivity (NETD)
≤ 50 mK
Radiometry
Yes, overlay on runtime video
IR Laser Rangefinder
Range
0–2400 m @ 1 Hz | 0–1200 m @ 10 Hz
Precision
0.1 m – 0.5 m
Gremsy Vio
The Gremsy Vio EO/IR payload is designed to support government and public-sector operations that depend on secure, reliable data collection and consistent performance in real-world environments. Its integrated sensing approach enables inspection, assessment, and situational awareness workflows commonly required by federal, state, and local agencies.

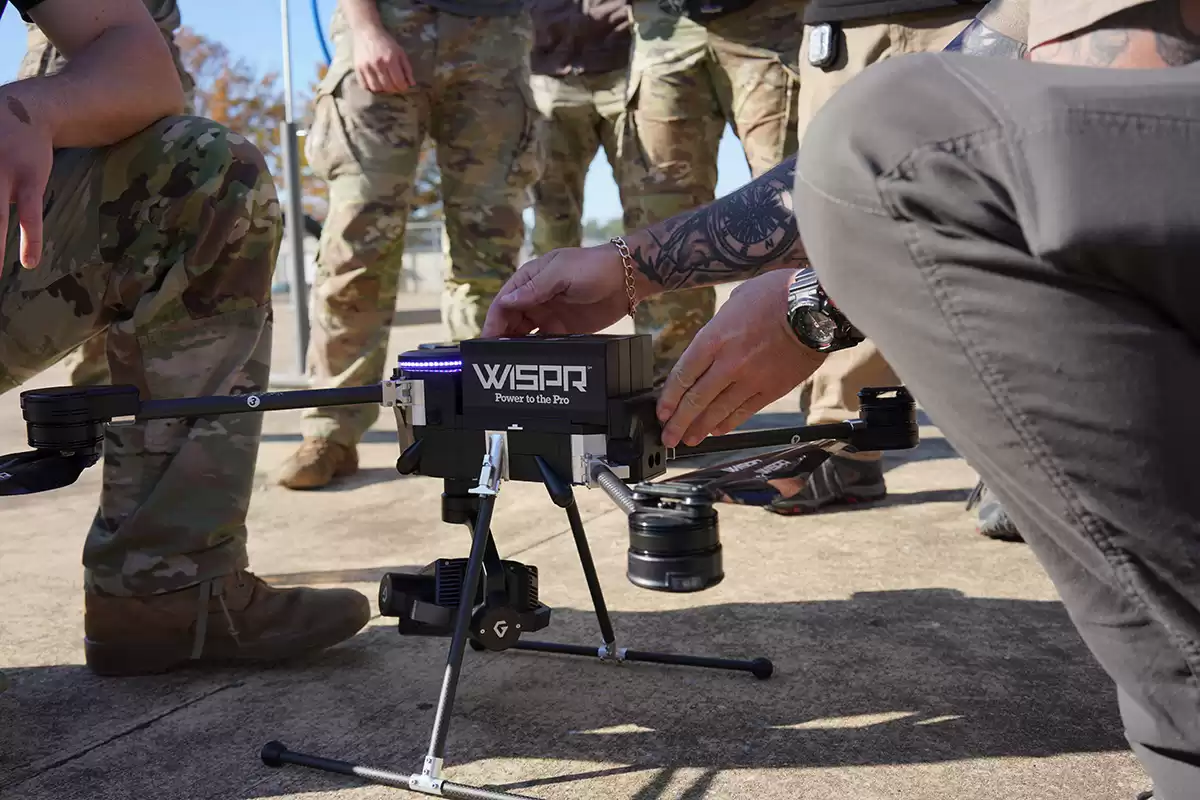

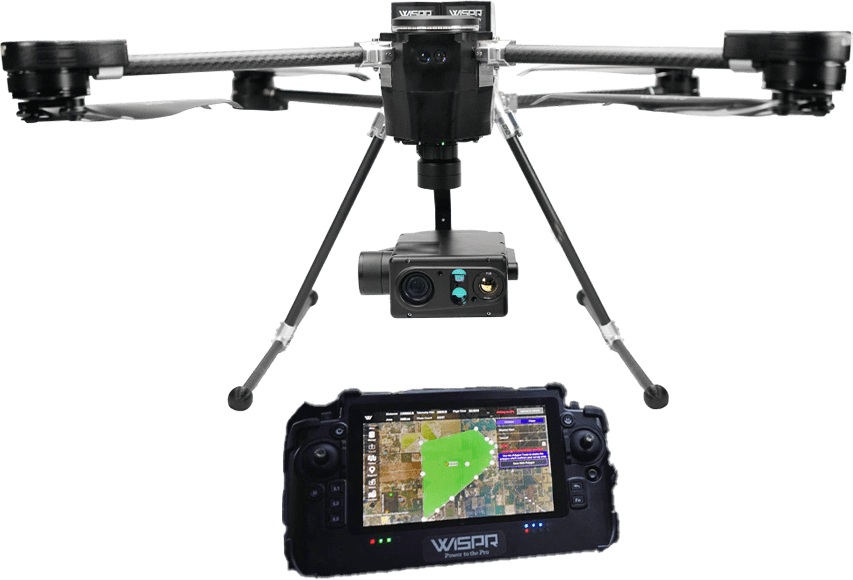

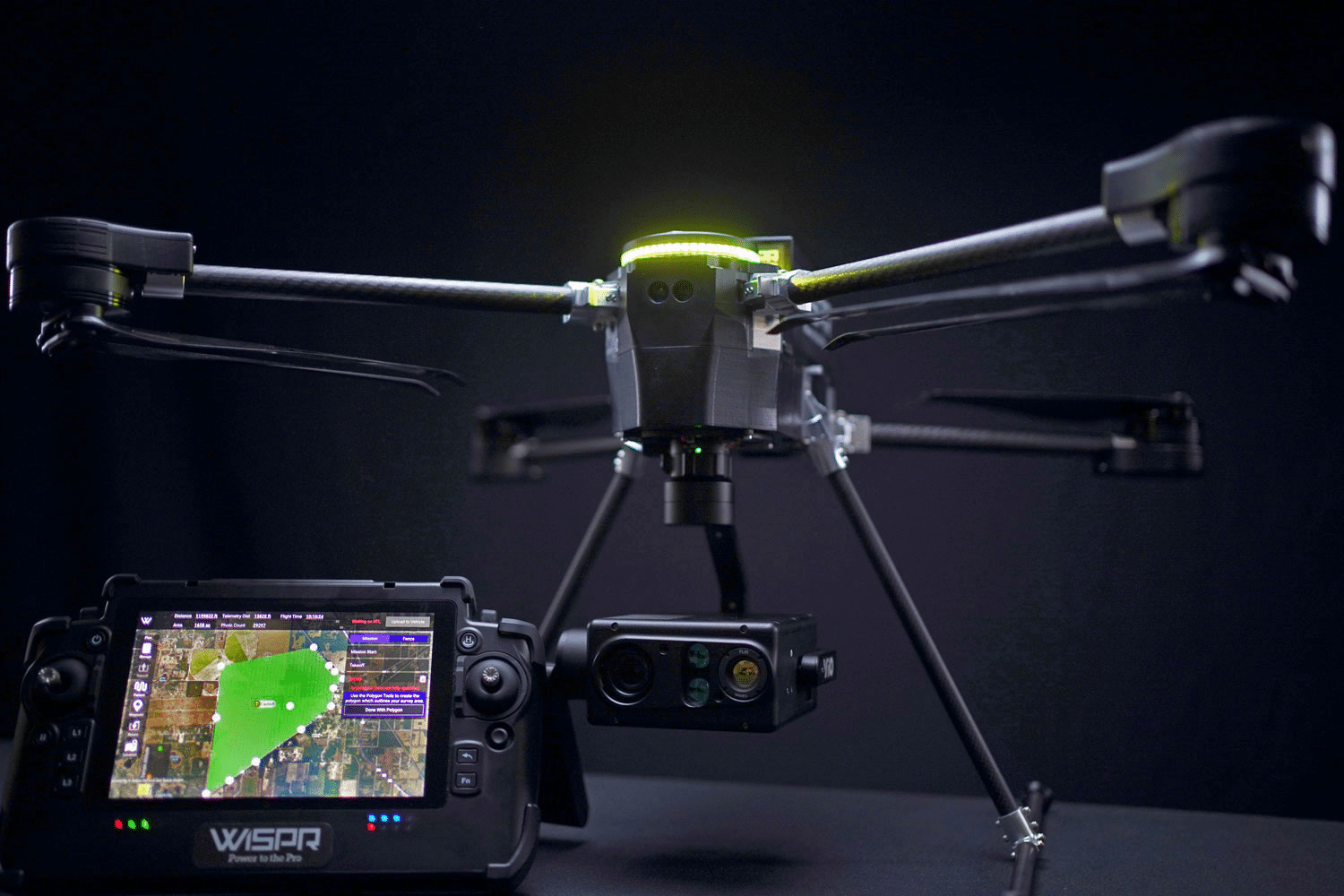

Built for operational adaptability, the Gremsy Vio supports mission planning and execution across infrastructure, public safety, and government inspection tasks. The payload integrates with the WISPR Ranger Pro and SkyScout 2 series, allowing agencies to deploy a single EO/IR system that aligns with evolving mission requirements without adding unnecessary complexity.
Get Your Custom Quote
Ready to explore the Gremsy Vio for your inspection or public safety needs? Request a custom quote tailored to your operational requirements.
