Sony LR1 (formerly ILX-LR1)

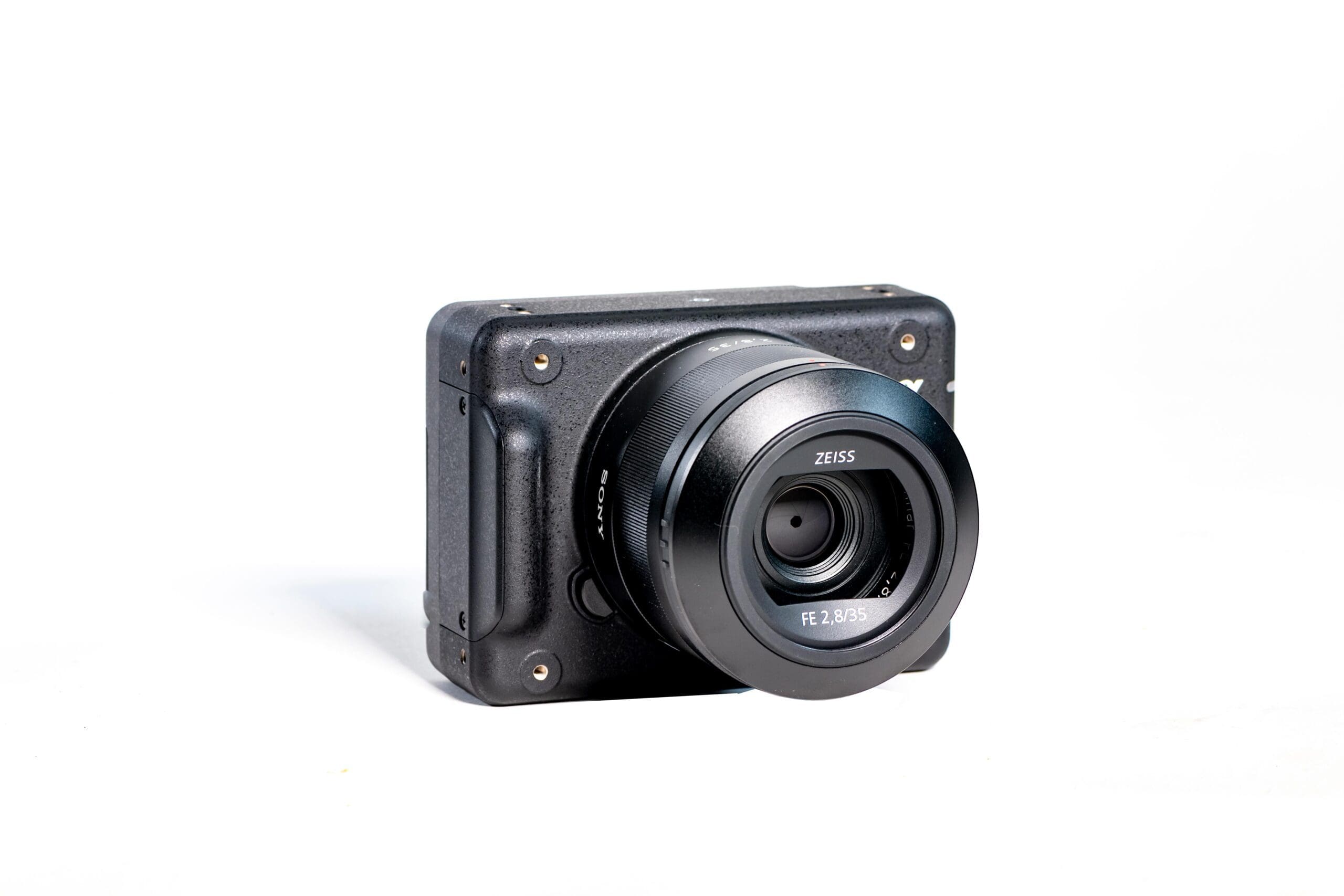

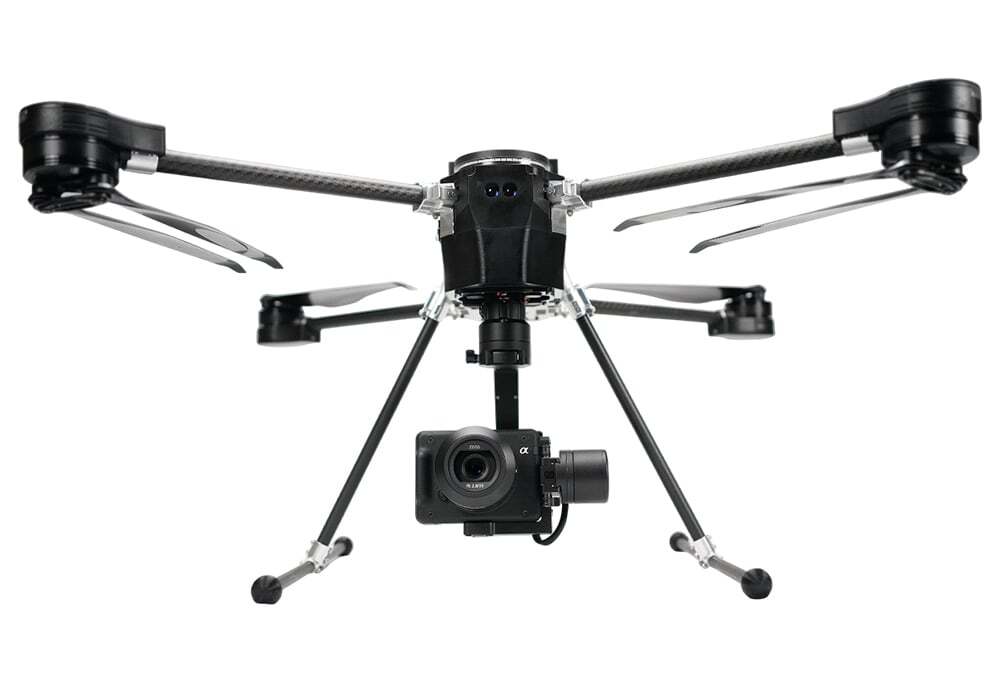

The Sony LR1 (formerly ILX-LR1) is a professional camera with a 61.0 effective megapixel, full-frame image sensor and interchangeable E-mount lenses.
Resolution
61 megapixels
GSD
.98cm/px @300 feet

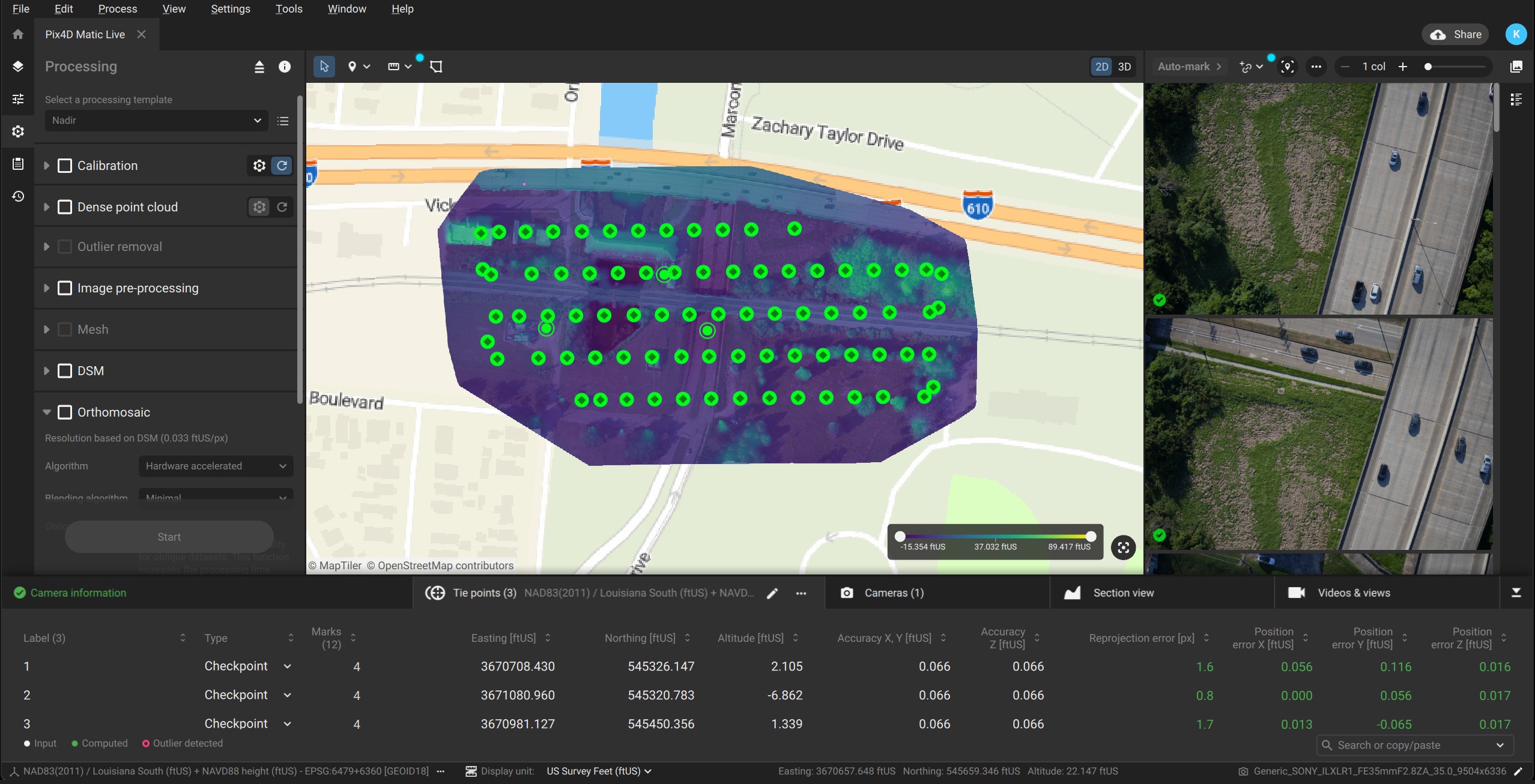

Accuracy
Get up to sub-centimeter accuracy

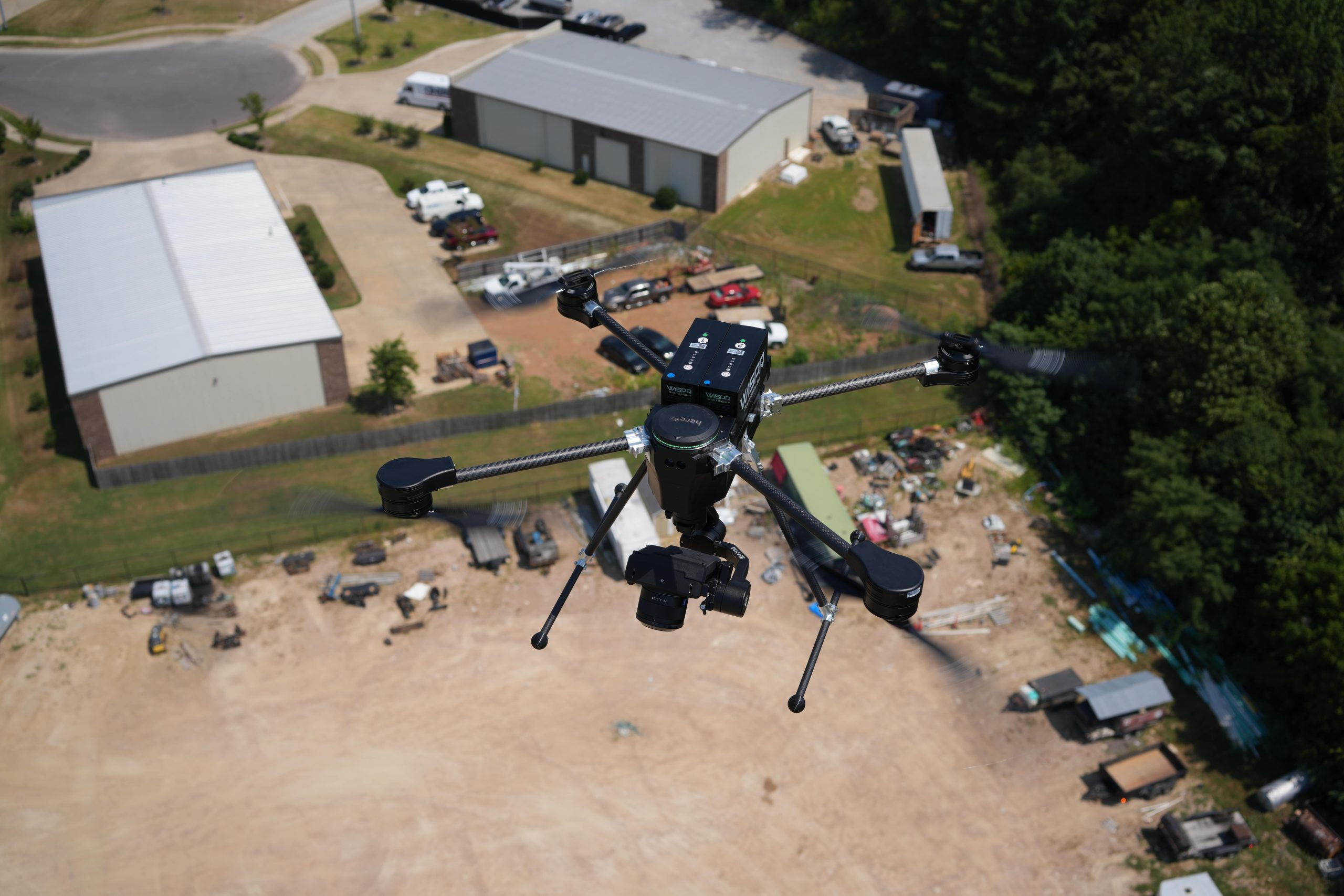

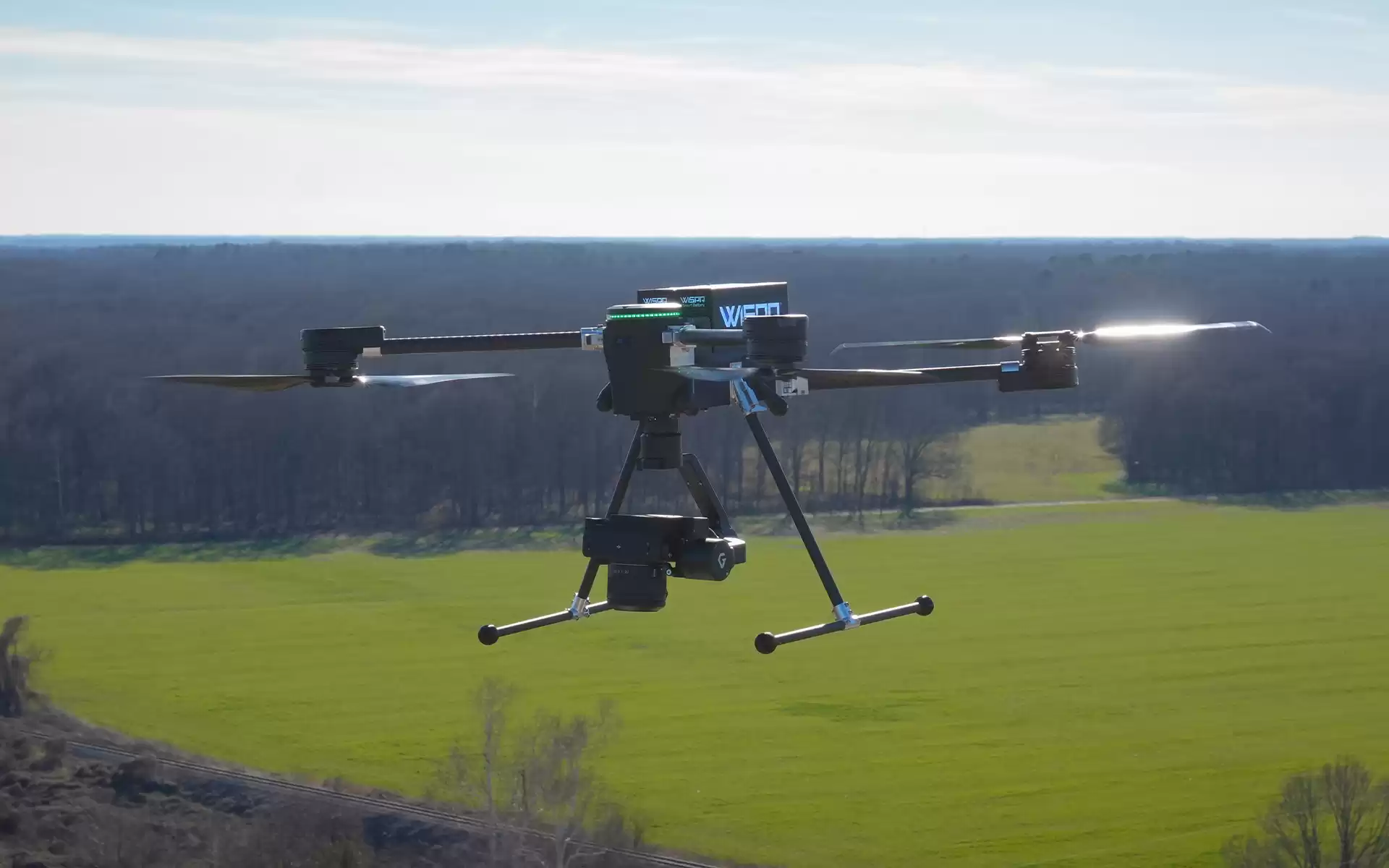

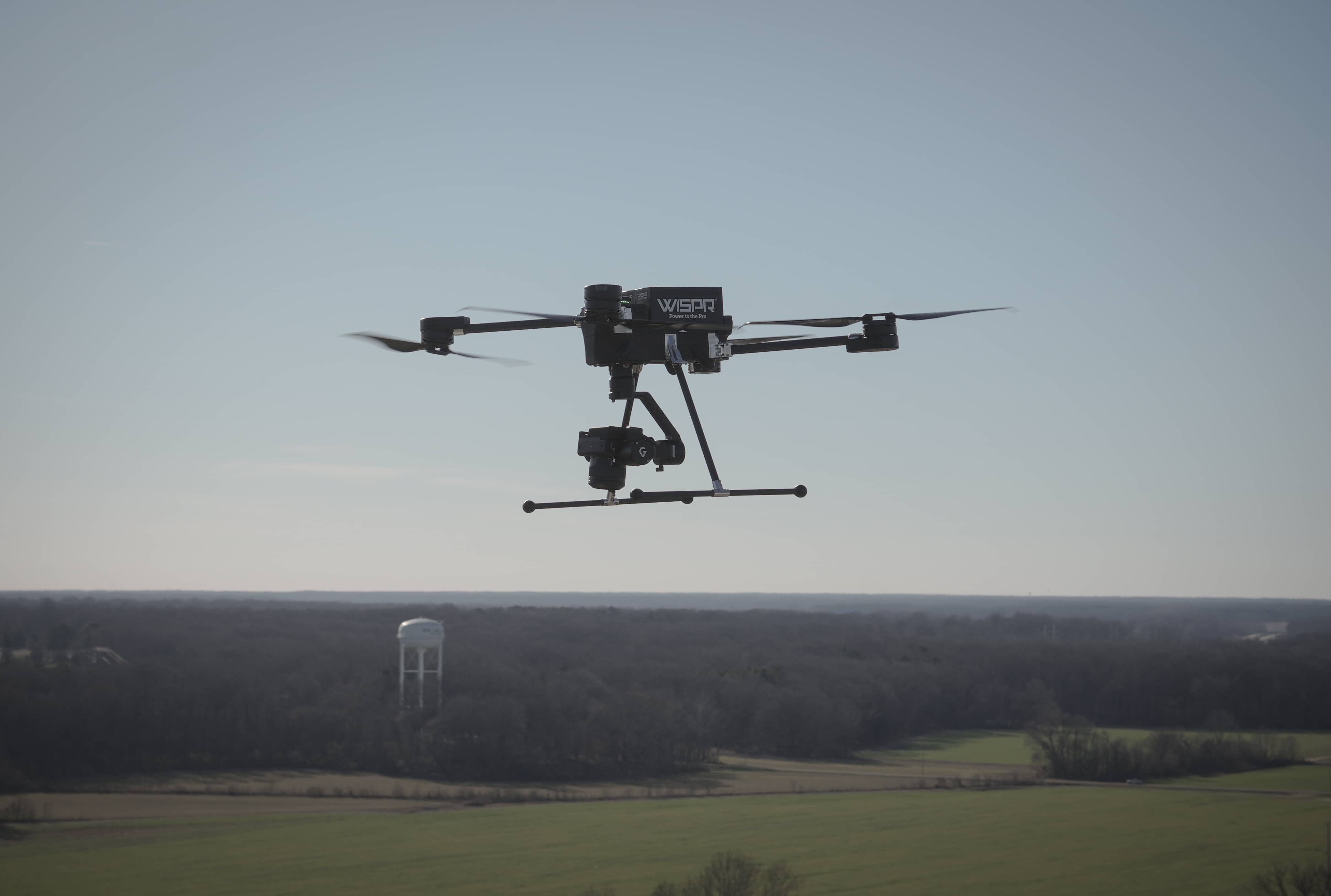

See The Sony LR1 in Action

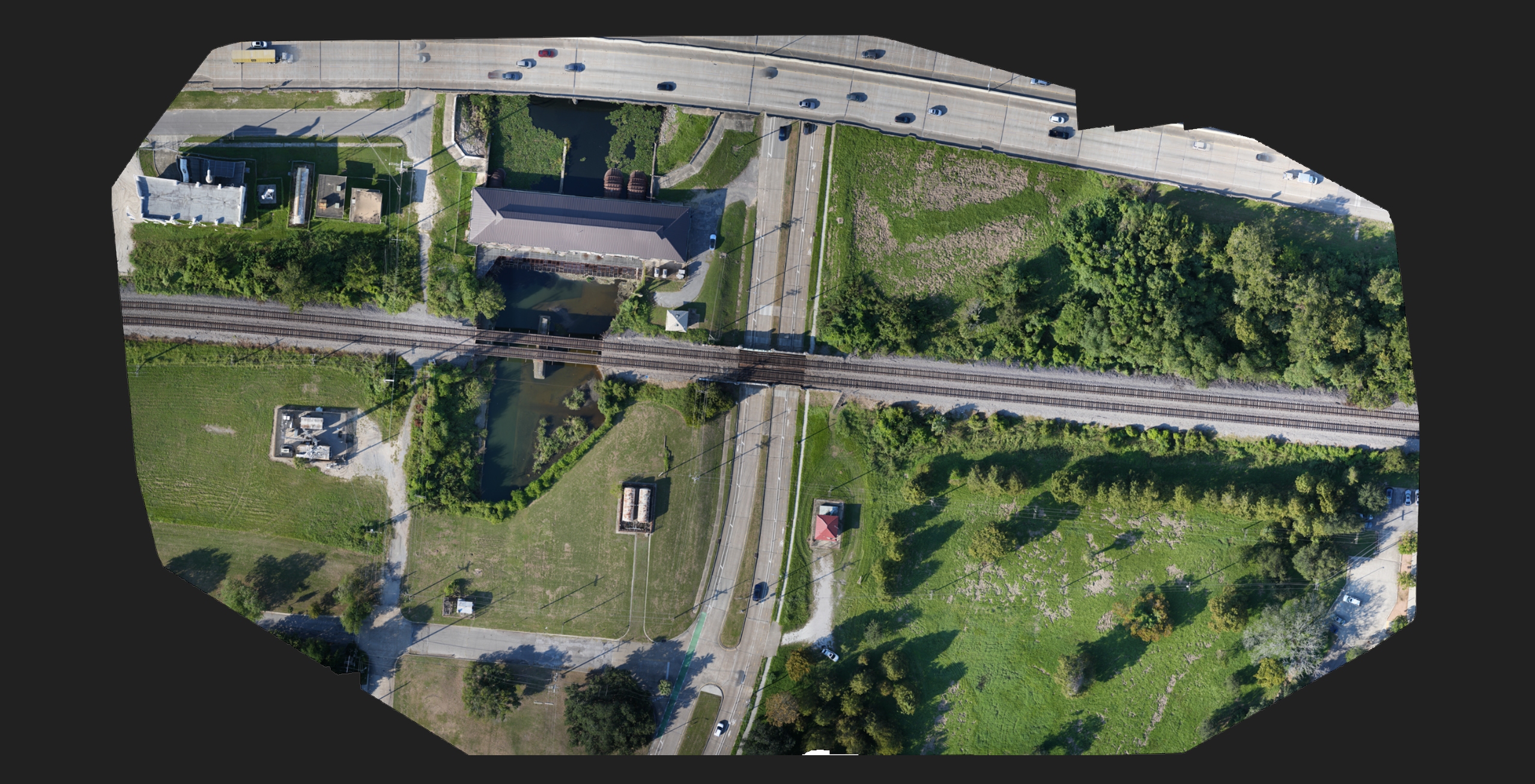

High resolution sensor for detailed images
Specifications
Complete professional features designed for real-world performance and mission-critical reliability.
Upgrade your drone pictures and videos with Sony’s advanced imaging technology. Transform your images with a 61.0 effective megapixel full-frame image sensor, and interchangeable E-mount precision lenses. With more resolution in every shot, you can see details that would be invisible with conventional drone cameras.

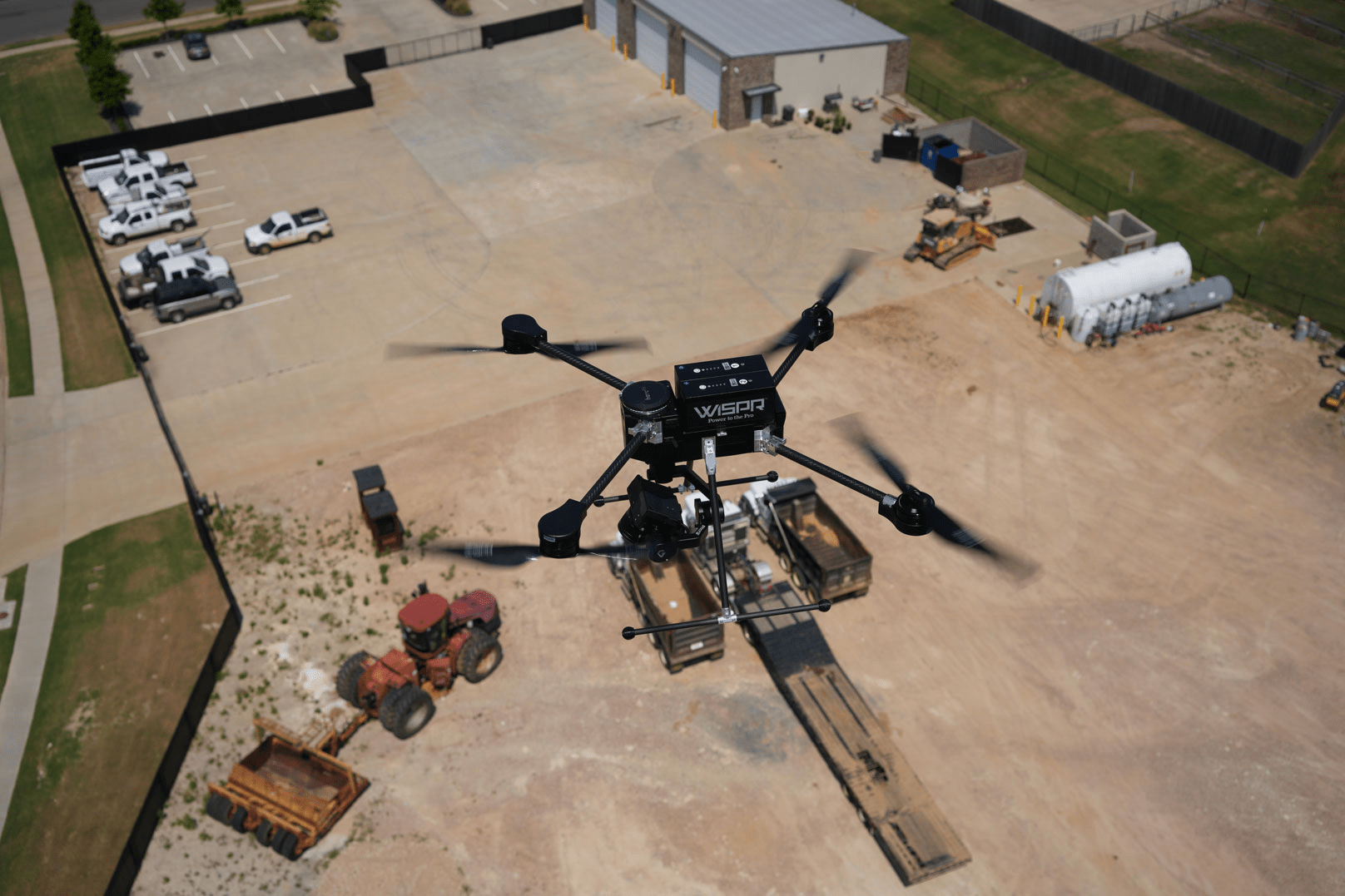

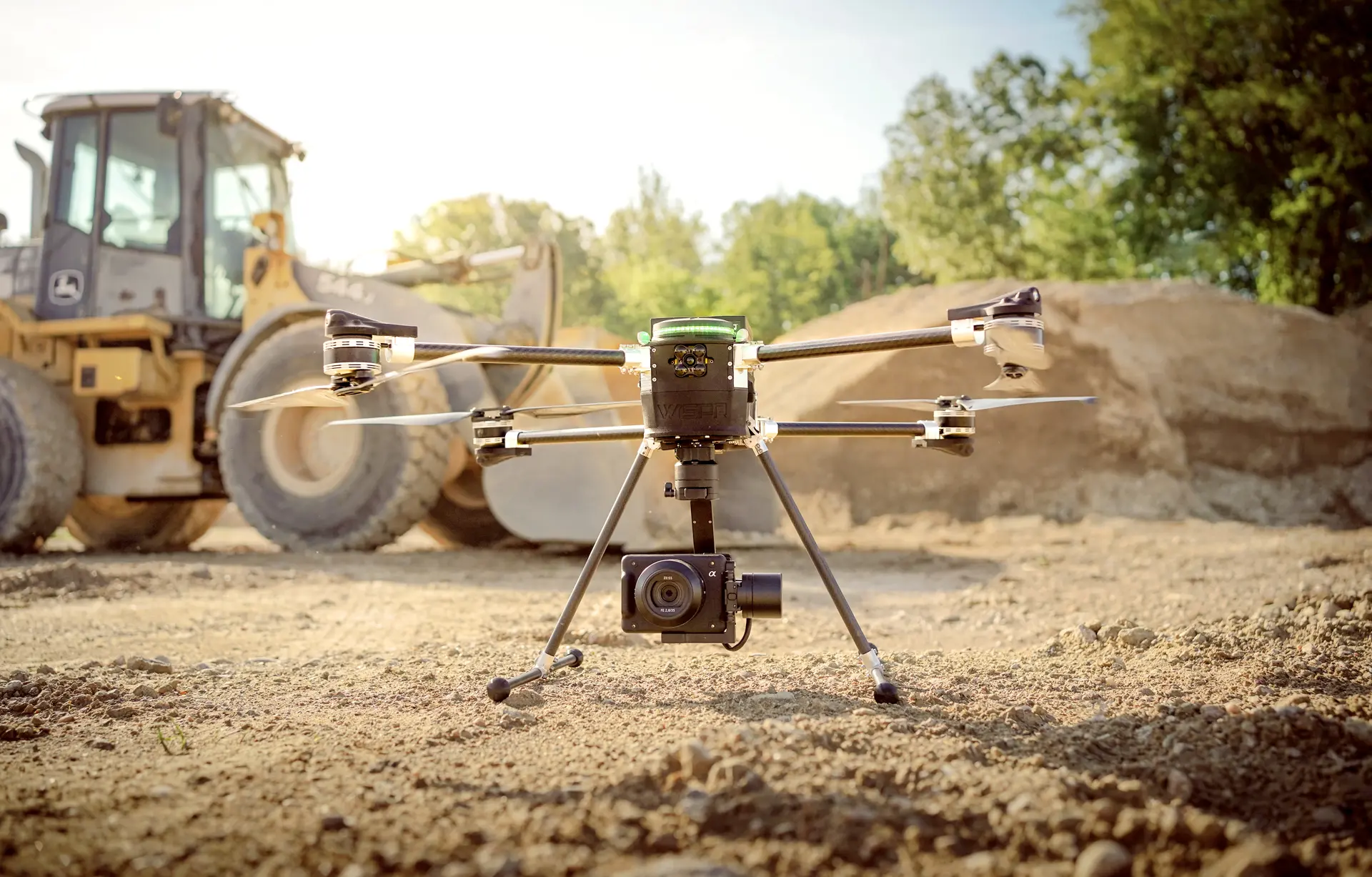

Significantly lighter than conventional Alpha cameras, the Sony LR1 (formerly ILX-LR1) is ideal for inspection, surveying and mapping. With no need for a viewfinder and external controls, its slim and versatile form factor means it’s suitable for a multitude of industrial applications.
A 1.38 in full-frame back-illuminated Exmor R™ CMOS image sensor with approximately 61.0 million effective pixels offers extraordinary sensitivity, resolution and dynamic range. Operating in real-time, the advanced BIONZ XR™ image processing engine delivers natural gradations and realistic colors with low noise for stills and movies. With high resolution, low noise and wide dynamic range imagery, the ILX-LR1 can reveal the finest details like small scratches and cracks during inspection, investigation, surveying and mapping. A wide ISO range of 100-32000 allows the camera to operate in most daylight conditions.
Sensor
Sensor
Exmor R CMOS sensor
Sensor Size
1.38” in Full Frame
Sensor Width
1.41”
Sensor Height
0.94”
Camera
Photo Resolution
61 megapixels
Image Size
9504 x 6336
Photo Format
JPEG, HEIF, RAW
Video Resolution
4K @ 59.94p max | 1080P @ 119.88p max
Video Format
XAVC S: MPEG-4 AVC/H.264 | XAVC HS: MPEG-H HEVC/H.265
Shutter Type
Mechanical shutter/Electronic Shutter
Shutter Speed
Still images (Mechanical shutter): 1/4000 to 30 s | Still images (Electronic shutter): 1/8000 to 30 s | Movies: 1/8000 to 1 s
Exposure Settings
+/- 5.0 EV (1/3 EV, 1/2 EV steps selectable)
ISO Sensitivity
Still images: ISO 100 - 32000 (expandable to ISO 50 - 102400), AUTO (ISO 100 - 12800) | Movies: ISO 100 - 32000 equivalent, AUTO (ISO 100 - 12800)
PAL/NTSC
Supported
Camera Lens
Lens Options
Sony FE Mount 35mm f2.8
Field of View
35mm f2.8 -> 62° | 30mm f2.8 -> 47°

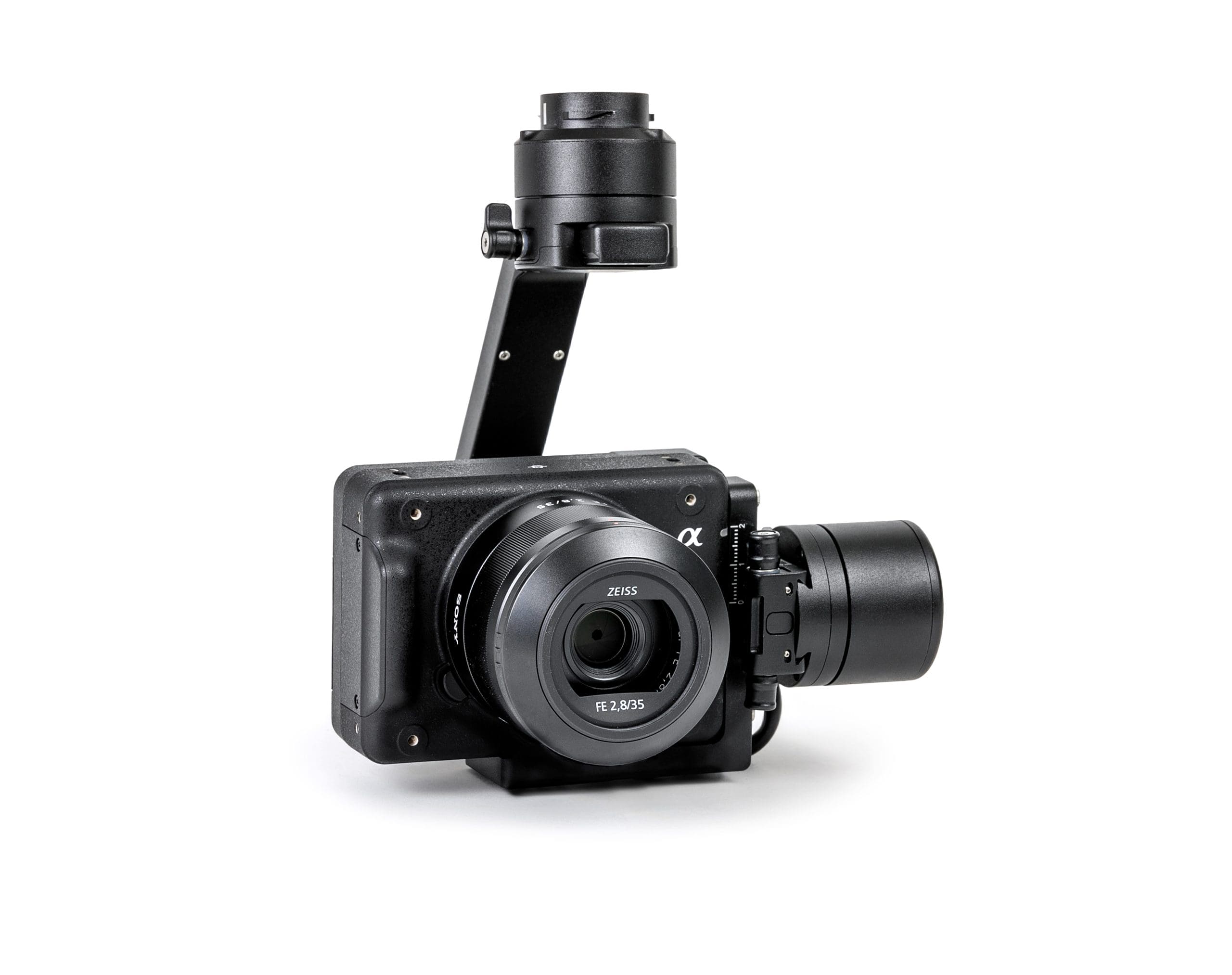

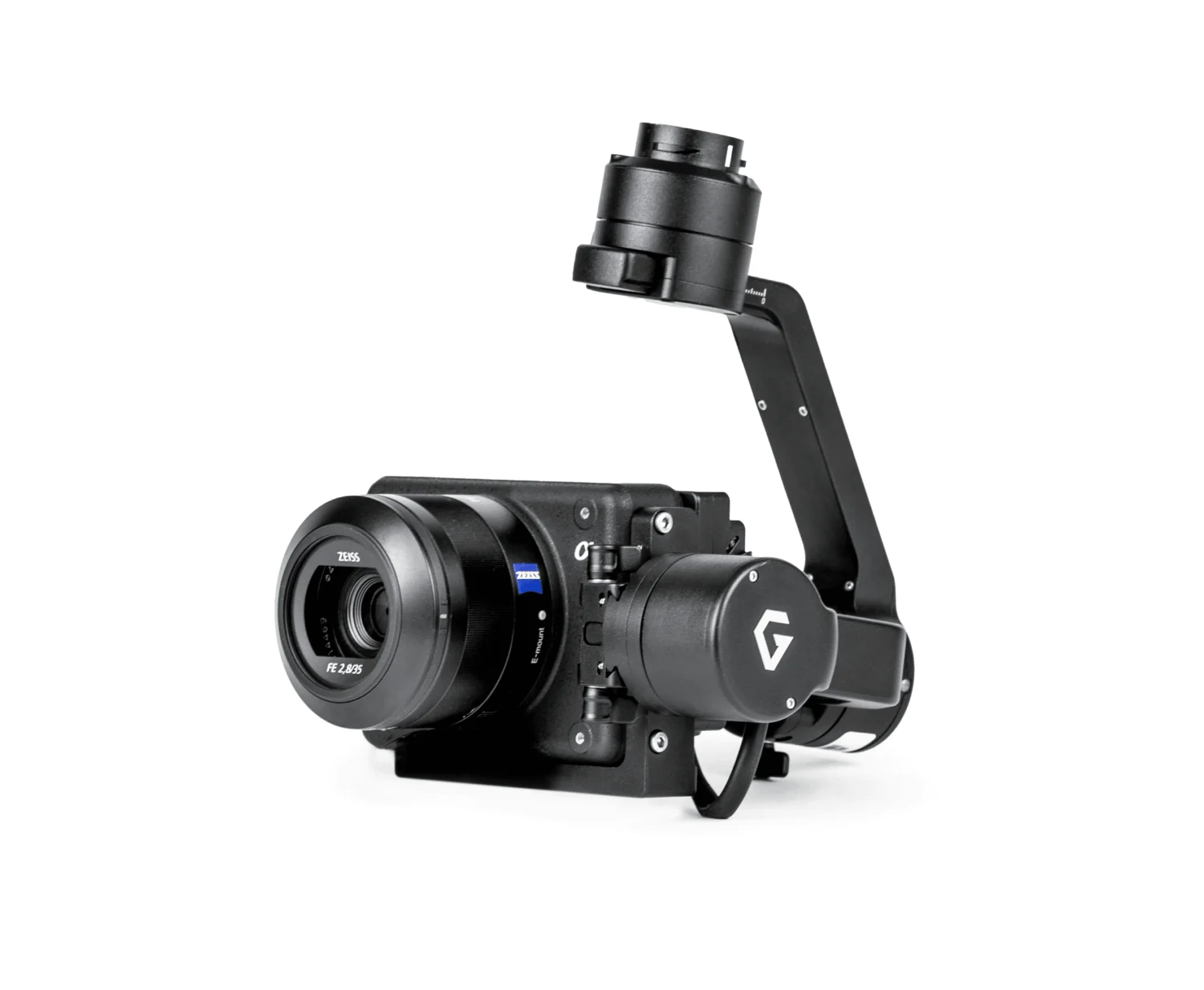

Gimbal
Angular Vibration Range
±0.02°
Maximum Controlled Rotation Speed
Pan axis: 180°/s | Tilt axis: 180°/s | Roll axis: 180°/s
Mechanical Endpoint Range
Pan axis control: ±326° | Tilt axis control: +50° ~ -140° | Roll axis control: +50° ~ -274°
Controlled Rotation Range
Pan axis control: ±320° | Tilt axis control: +40° ~ -120° | Roll axis control: ± 40°
Operating Temperature
32°F – 122°F
